Bespoke Curved Sliding Doors

Bespoke Curved Sliding Doors

Bespoke curved sliding doors with double-glazed curved toughened glass and aluminium alloy frames.

£750 setup fee + £690 per m². Total price = £750 + (door area in m² × £690). Send your dimensions and curve details for a quotation.

Download curved sliding doors brochure (PDF, 3 pages)

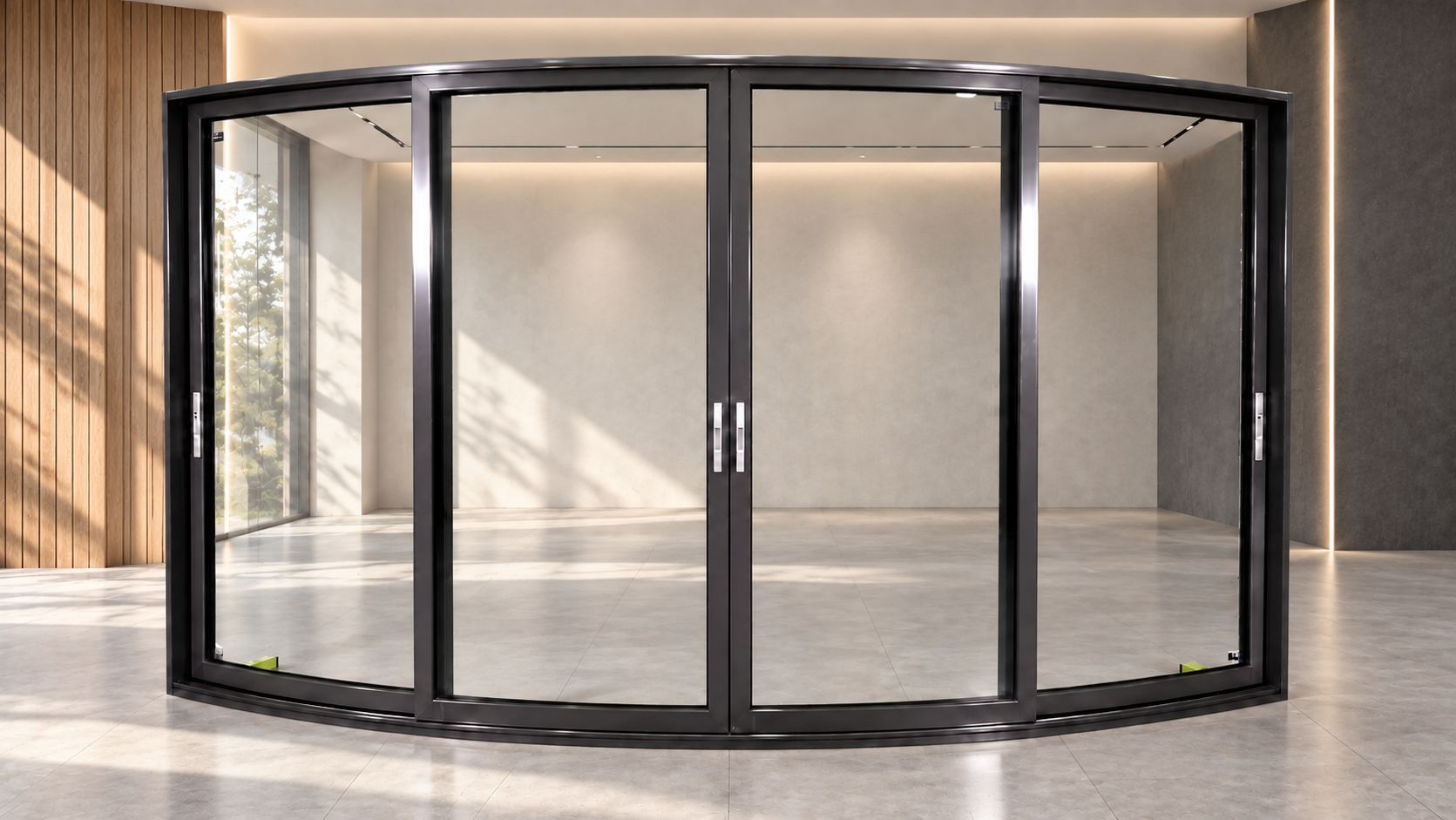

Four-panel curved sliding glass door with dark aluminium frames in a modern showroom

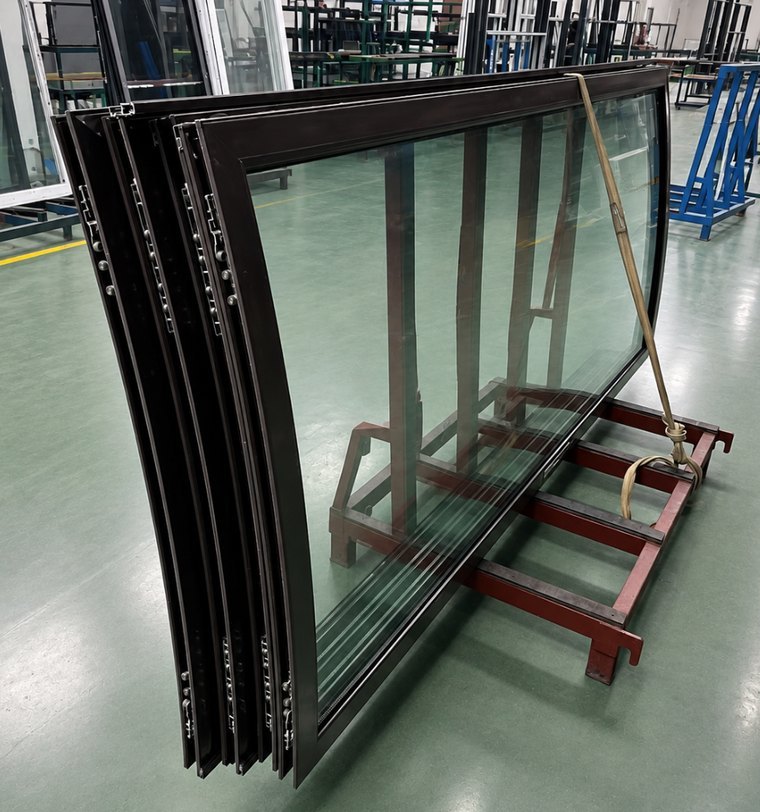

Curved sliding door leaves, glazed and assembled

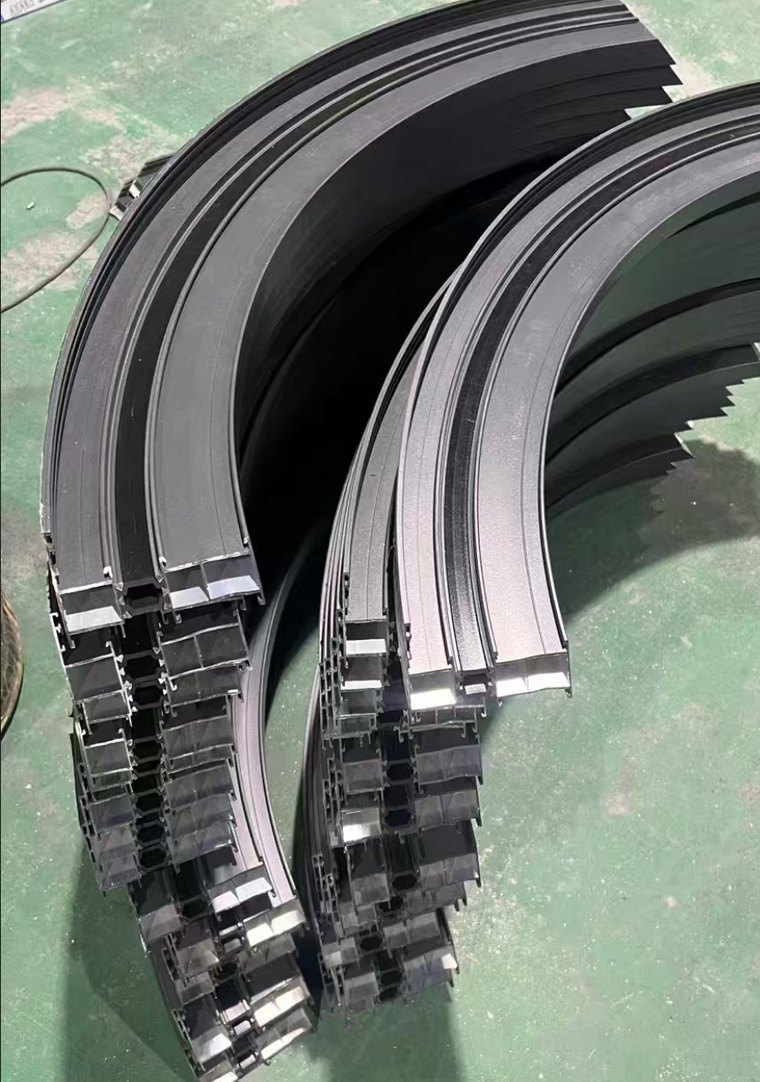

Aluminium profiles bent to the opening radius

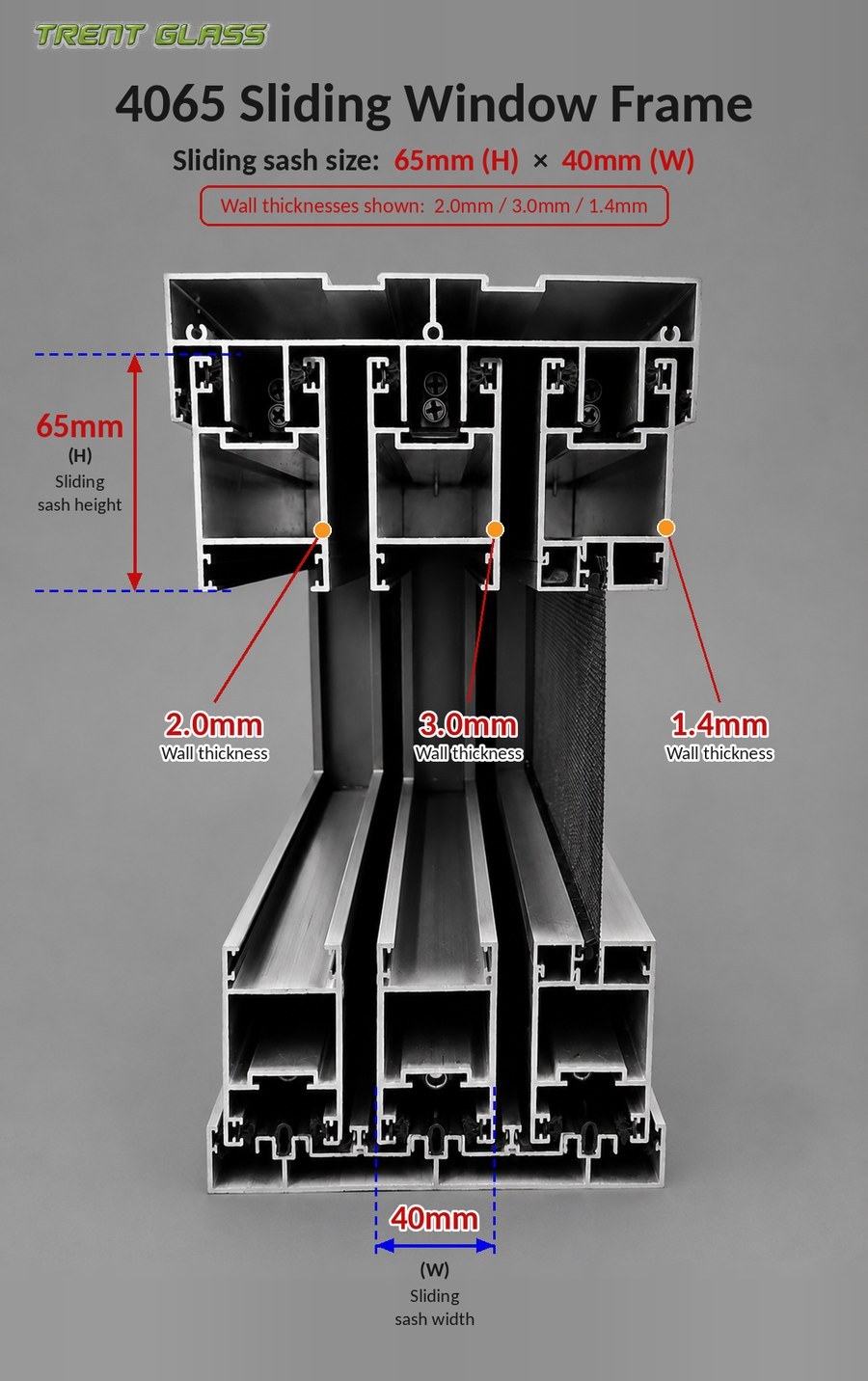

4065 twin-track sliding sash section, 65 by 40 mm

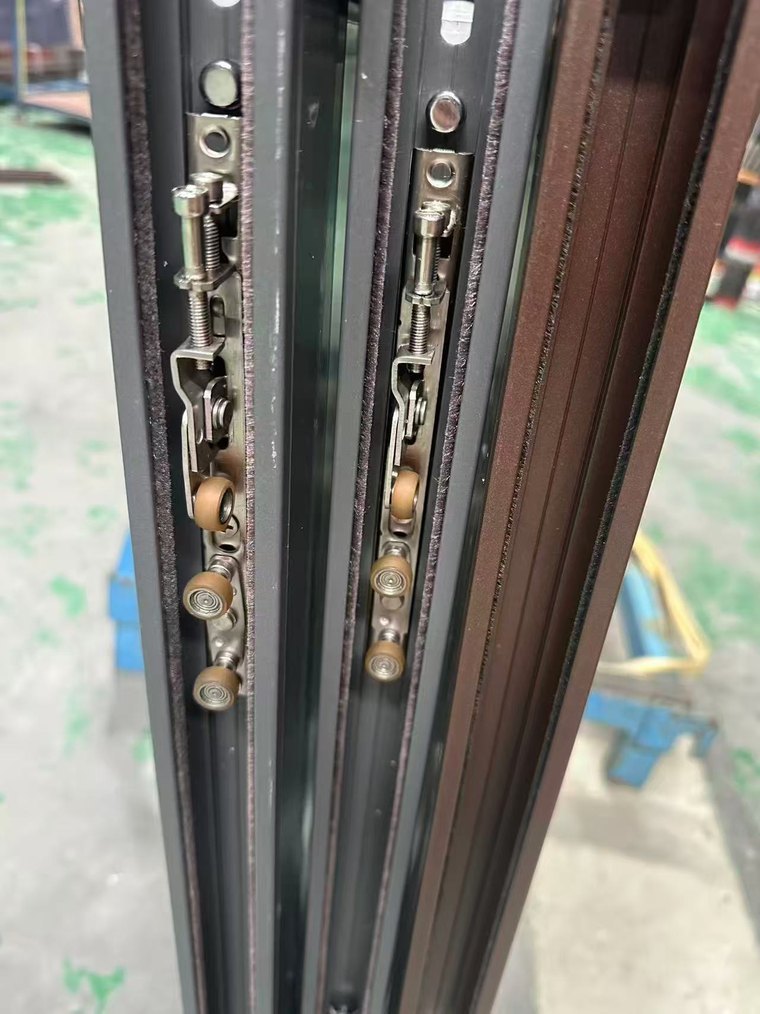

Stainless steel roller carriages with height adjustment

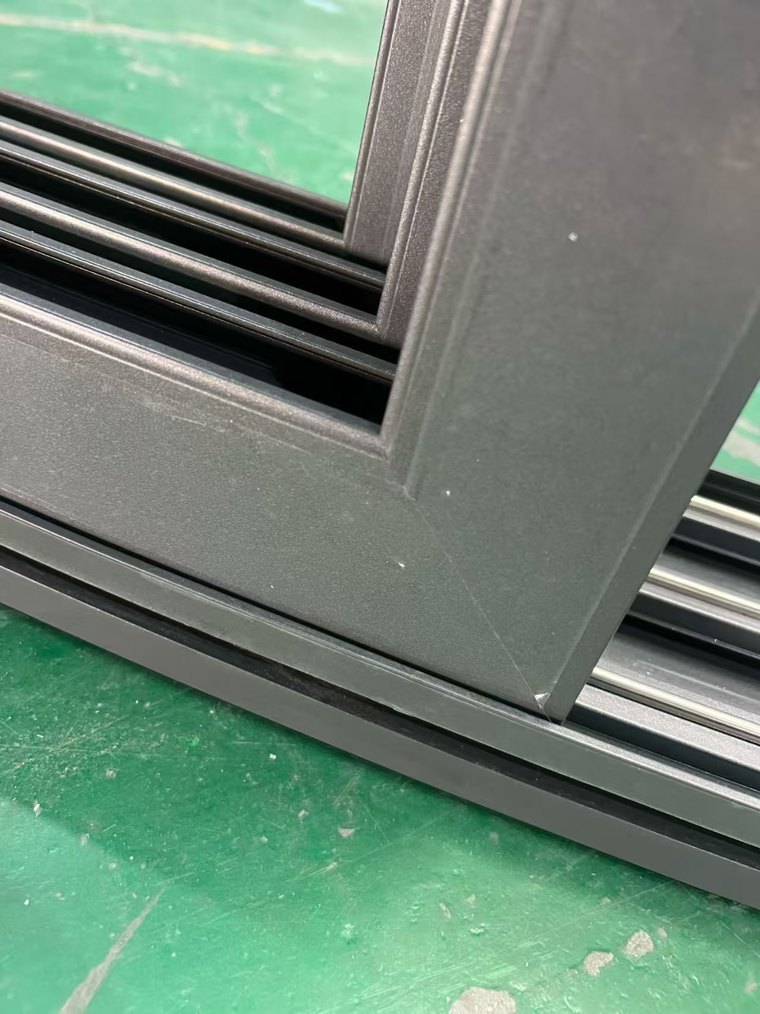

Frame corner and powder coated finish

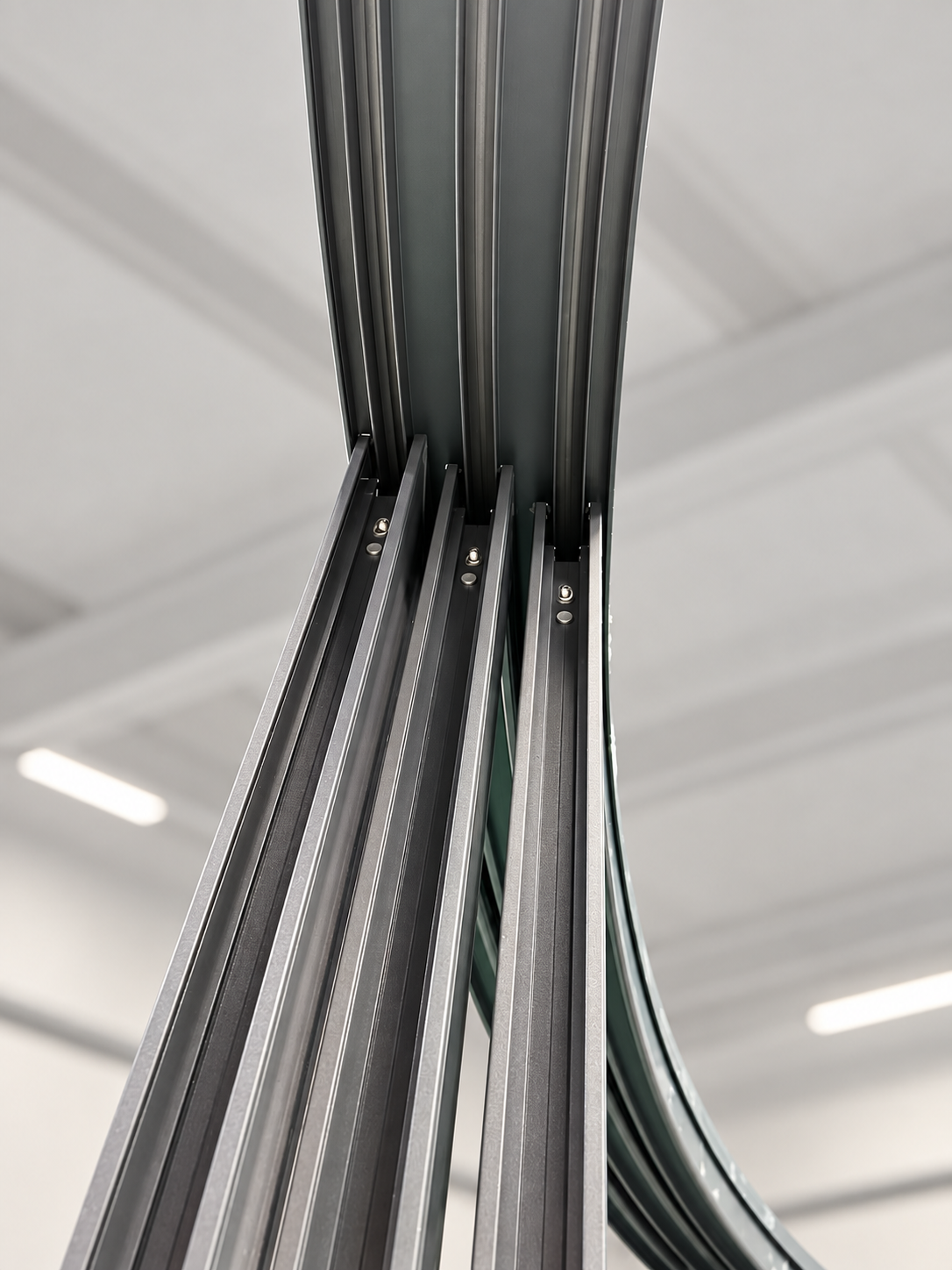

Upward view of curved sliding door tracks and aluminium frame
Four-panel curved sliding glass door with dark aluminium frames in a modern showroom
Curved sliding door leaves, glazed and assembled
Aluminium profiles bent to the opening radius
4065 twin-track sliding sash section, 65 by 40 mm
Stainless steel roller carriages with height adjustment
Frame corner and powder coated finish
Upward view of curved sliding door tracks and aluminium frame
Categories ,
Request Quote

Bespoke curved sliding door systems

Trent Glass designs, manufactures and supplies curved sliding door systems made individually to the geometry of your opening. Aluminium profiles are bent to the required radius and the glass is curved to match. The leaves are glazed and trial-assembled before leaving the factory.

Trent Pdf File IconDownload curved sliding doors brochure (PDF, 3 pages)

Curved sliding door video

Made to suit your opening

  • Curved sliding doors, with fixed curved panels alongside where required
  • Curved toughened glass and curved double-glazed units
  • Straight sliding doors in the same system for square openings
  • Aluminium profiles bent to your opening radius
  • Powder coated finishes, inside and out
  • Made to order from your measured sizes

Our curved door offering is a sliding system. We do not offer curved hinged or French doors.

Curved leaves, glazed and assembled
Aluminium profiles bent to radius

The sliding system: 4065 series aluminium

The proposed twin-track system gives each sliding leaf its own runner, allowing the leaves to pass the fixed panels around the curve. The curved head track and floor guide are matched to the opening radius.

  • Twin-track arrangement
  • 65 × 40 mm sliding sash section
  • Quoted on the 3.0 mm wall specification
  • Stainless steel roller carriages with height adjustment
  • Full perimeter brush and gasket weather seals
4065 profile illustration: the quoted wall specification is 3.0 mm.
Roller carriages with height adjustment
Frame corner and powder coated finish
Upward view of curved sliding door tracks and aluminium frame
Curved sliding door track and frame detail

Request a bespoke quotation

Pricing is £750 setup fee plus £690 per m² for double-glazed curved toughened glass with aluminium alloy frames. Total price = £750 + (door area in m² × £690). Send the width and height of each opening and the depth of the curve for curved bays. Include a drawing or sketch and your preferred opening arrangement and finish.

Enquire about curved sliding doors

Download the brochure

View the product overview, production photographs and sliding-system details in our three-page brochure.

Trent Pdf File IconDownload curved sliding doors brochure (PDF, 3 pages)

Photographs show comparable curved sliding units in production at our overseas manufacturing facility. Finishes and configurations are illustrative and are specified individually for each order.
